LTPH series
Diffused continuous LED flat dome lights
Overview
Models
Downloads
Related
Diffused
Flat Dome Light
Key advantages
- Ideal for large FOV applications
- Compactness & easy integration
- 24V DC supply voltage
- JST connector (optional M8, M12)
- Red, Green, Blue and White
- Custom models available on request

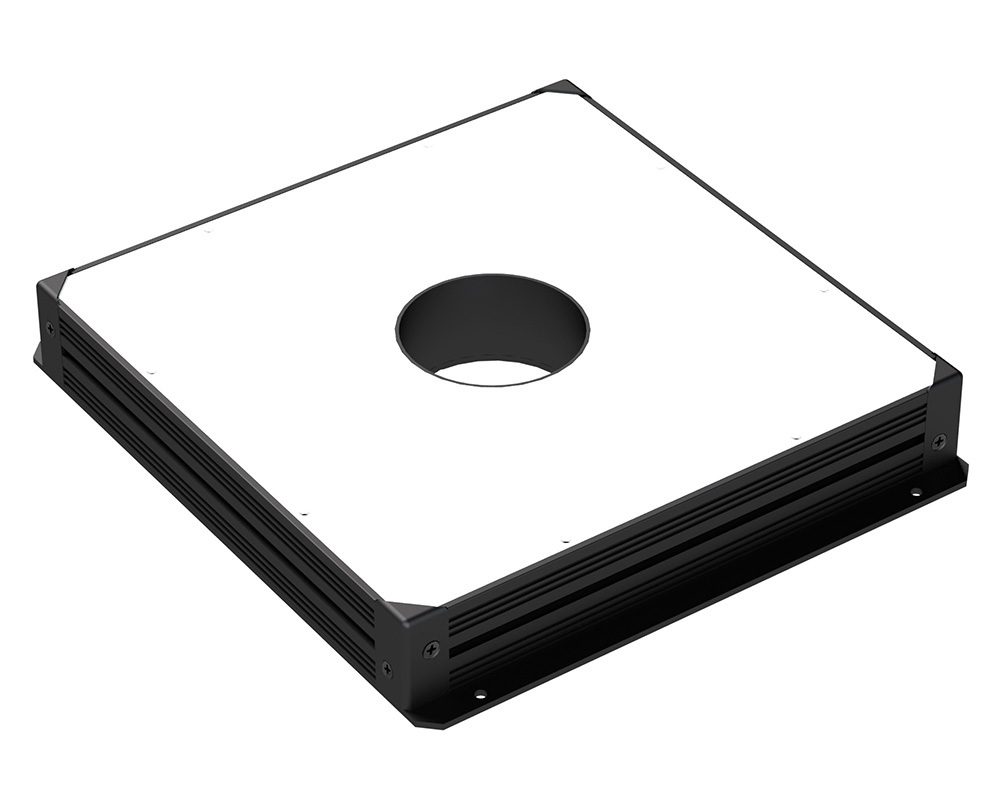

LTPH series features diffused LED front light panels with center hole designed to homogeneously illuminate workpieces of various sizes and inspect complex surfaces providing uniform, wide-field and shadowless illumination.
LTPH front light panels feature a camera-lens hole compatible with the most common types of optics. Their compact design allows for extra space, which is essential if you need to install robotic arms or other assembly tools.
LTPH flat dome lights are the perfect solution for a wide variety of machine vision applications, such as positioning identification of automotive parts, OCR and defect detection on glare surfaces and robot picking.
Suggested use is in continuous mode.
Discover more
Learn
Basics
Online tools
Optics finder
Camera finder
Lighting finder
Imaging lens selector
Projection lens selector
Application examples
- OCR on reflective metal parts and packaging labels
- Pick and place
- Inspection of large electronic components

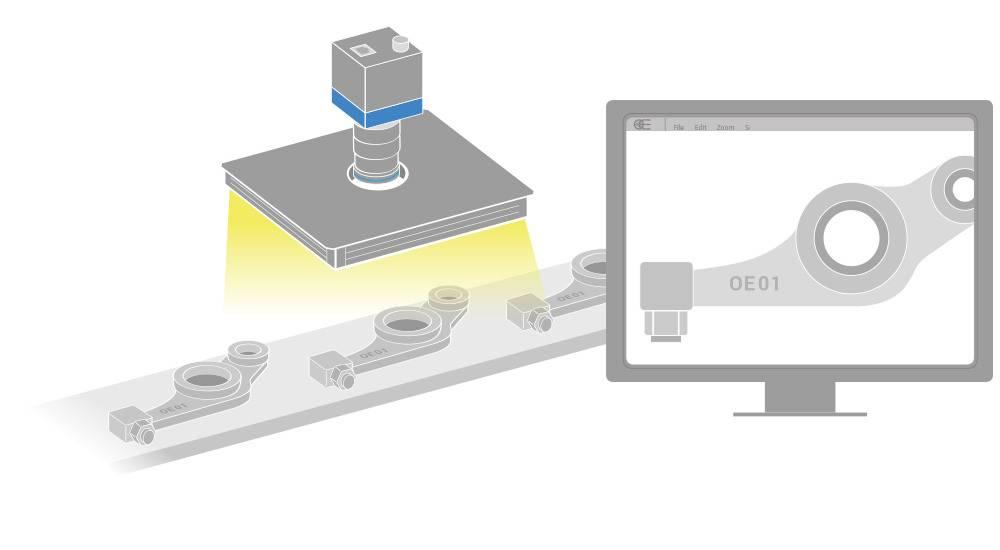

Application: OCR on a reflective metal component. Sample: Metal part. LTPH series flat dome light homogeneously illuminates the inspected workpiece to image the engraved text.

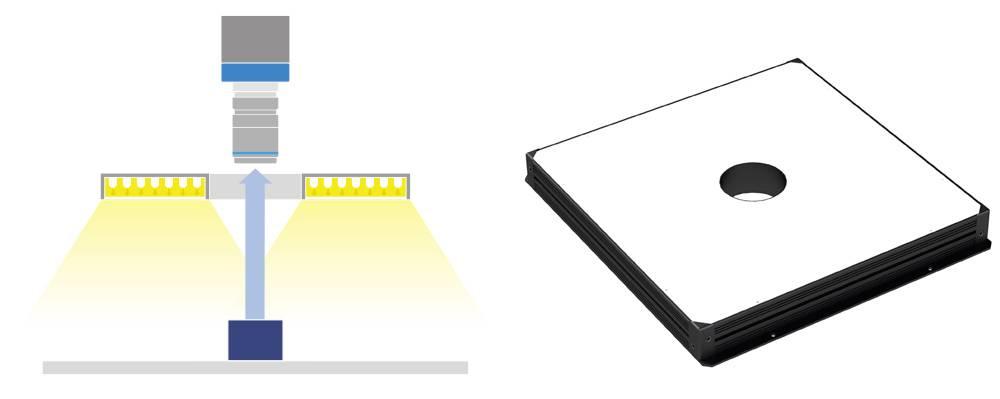

Lighting structure
Please wait
Unable to process your request
Back to models
Filters
Close
Reset Filters
Notes
- ± 15%. See datasheet for measurments distance
- Tolerance ± 2%
- Constant voltage power supply
- Constant current power supply
